Ms3102E 32-6P Panel Type Military Connector

VOGELE BOMAG VOLVO DYNAPAC WIRTGEN HAMM CAT ORIGINAL

Ms3102E 32-6P Panel Type Military Connector

Part Details
⚠️ Önemli Bilgilendirme

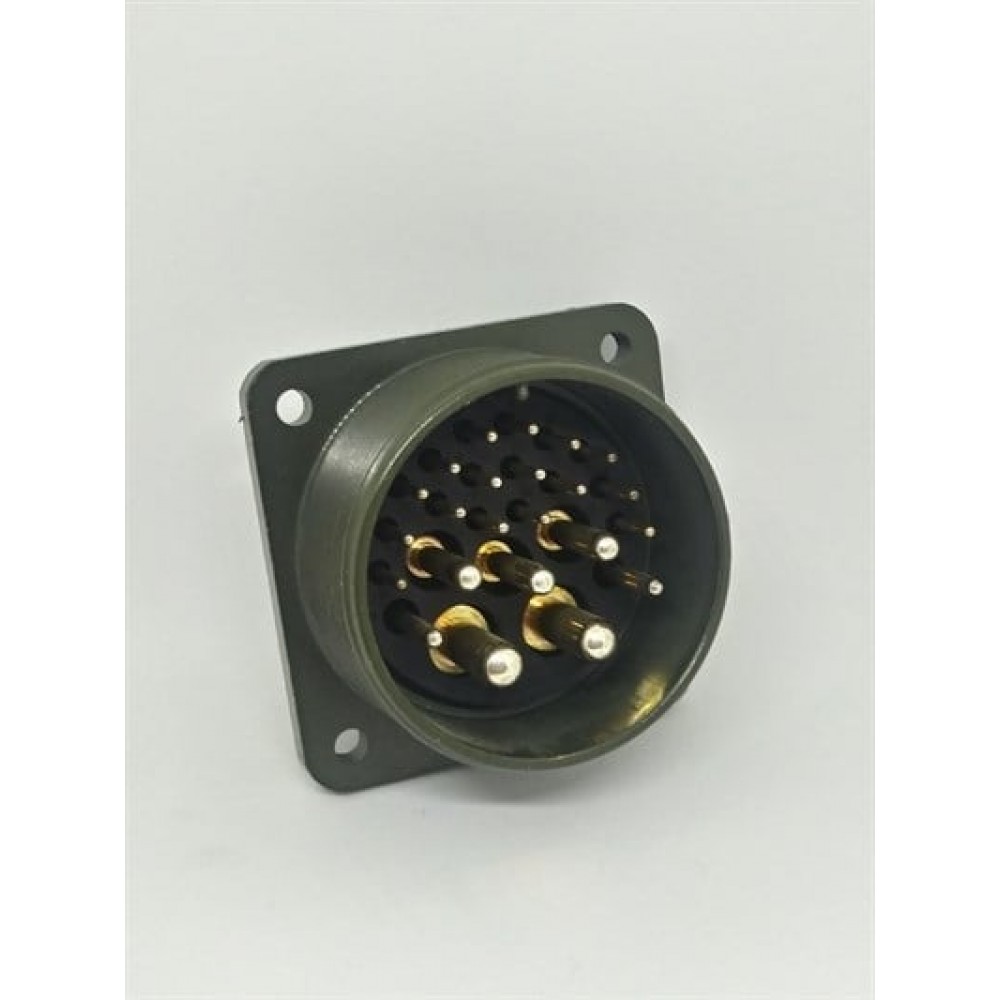

This is a 23-pin, 32-size male connector, which we call the MIL-DTL-5015 Series Military standard panel type. The product codes for the connectors that can be used with this product are the MS3106F 32-6S female cable-type connector and the MS3108F 32-6S female cable-type connector with a 90-degree backshell. The connector has 16-size, 12-size, 8-size, and 4-size pins. They can carry currents of 13 amps over the 16-size pin, 23 amps over the 12-size pin, 46 amps over the 8-size pin, and 80 amps over the 4-size pin. The products are secured together by inserting the movable part, i.e., the cable-type connector, into its counterpart and then rotating the collar on the movable part.

⚠️ Not: Ürün uyumluluğunu garanti altına almak için, sipariş vermeden önce makinenizin seri numarası ile kontrol edilmesi tavsiye edilir. Seri numarası doğrulaması, parçanın doğru model ve makine tipiyle tam uyumlu olup olmadığını netleştirir ve yanlış parça sipariş edilmesinin önüne geçer. Bu sayede hem zaman kaybı hem de ek maliyetler önlenmiş olur.

Stock Status: Stok için irtibata geçiniz
Part Number: MS3102E-32-6P
Uyumlu Modeller: CAT | VÖGELE | WIRTGEN | BOMAG | DYNAPAC | VOLVO | AMMANN | HAMM

Based on 0 reviews. - Write a review

Qty

Add to Cart

Fiyatlar İçin Üye Olun Whatsapp Destek Hattı

Add to Wish List

connector , electrical connector , cable connector , female pin , male pin , sfml connector , industrial connector , machine connector , asphalt machine connector , construction machine connector , sensor connector , power transmission connector , cable connection connector , ankara connector , spare parts connector , vogele connector , wirtgen connector , cat connector , dynapac connector , bomag connector , volvo connector
